REFRIGERANT AIR DRYERS
Compressed Air Dryers

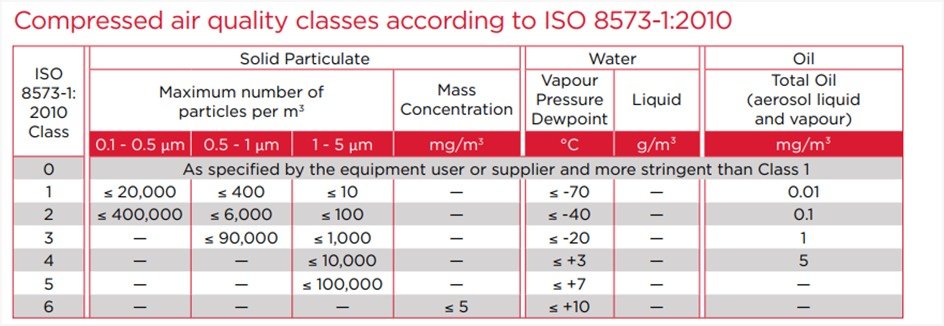

Compressed air contains contaminants such as water, oil and particulates which must be removed or reduced to the acceptable level based on specific application requirements. Standard ISO 8573-1 specifies air purity/quality classes for these contaminants. Humidity (water vapour content) is expressed in the terms of Pressure Dew Point (PDP) where Dew point is the temperature at which air is 100% saturated with moisture.
Our range of air dryers ensure protection of your downstream systems and processes in a reliable, energy-efficient and cost-effective way.
Refrigeration Air Dryers
Refrigeration dryers have been designed to effectively separate water from the compressed air thus lower pressure dew point all the way down to +3°C.
Drying is achieved on the principle of cooling which takes place inside highly efficient and ultra compact 3 stage heat exchanger. In the first stage (air-air heat exchanger) hot and humid inlet air is being precooled by the cold outgoing air. In the second stage (air-refrigerant heat exchanger) intensive water condensation takes place due to cooling the air.
All condensed water is separated from the main compressed air stream in the third stage by integrated demister. A proven and robust design enables efficient and reliable operation, fast installation and simple maintenance. We can offer refrigerant dryers can range for air flow of as small as 0.42 m3/.min to an air flow rate as large as 384 m3/min . These efficient refrigerant dryers offer long-term solutions, ensuring lower operational costs and a timely return on investment
SAVE Energy with Refrigerant air dryer
Operators primarily focus on compressed air quality and purchase cost. Differences in the operating costs of refrigerant dryers are often less likely to be considered. The Gardner Denver refrigerant dryers are characterised by their energy efficiency, which helps to reduce running costs, thanks to patented heat exchanger technology.
- High quality heat exchanger with low pressure loss
- Energy Saving mode ESA – shuts dryer off during low loads
- Full feature, multi-function innovative control panel
- Anti freeze mode – shuts dryer off to avoid icing
- Low operating costs
- Compact design
- Alarm display with history of alarms
- Effective condensate separation
- Easy to install, operate and maintain
- Simplified access to unit for easy maintenance
Contact us today to get in touch for your requirements.
