Lubricated Rotary Screw Compressors (22-30kW)
The perfect fit to maximise productivity

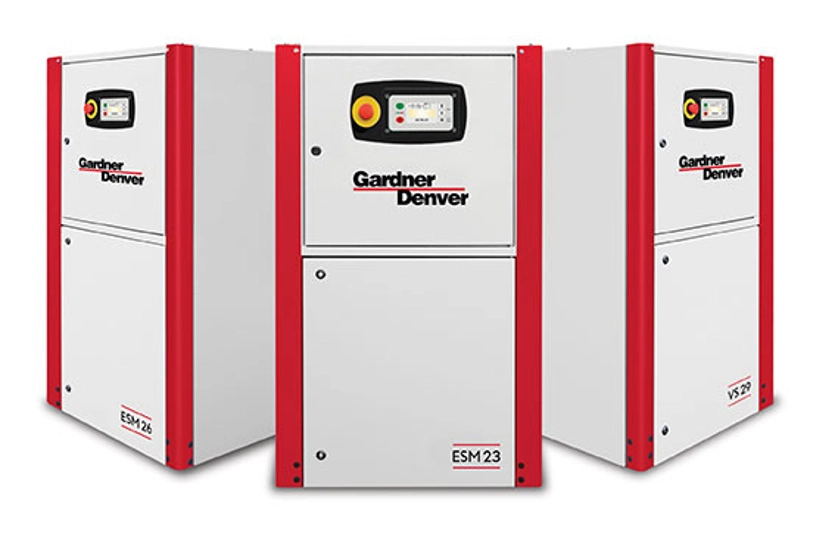

The growing industrial demand for compressed air requires compressor manufacturers to provide more reliable, economic and versatile compressors within a small footprint Gardner Denver addresses these requirements, with the introduction of the new ESM 23-29 / VS 23-29 Series.
Benefits of ESM23 to VS29 – 22, 26 & 30 kW oil lubricated screw compressors:
- Fixed & Variable speed
- GD Pilot SE control system for reliability and simplicity of operation
- Premium efficiency at 22kW
- Lower cost option at 30kW compared to ESM30 and above
- Flow rates 1.03 to 5.52 m3/min
- Pressure 5 -13 bar ( VS23 – max 10 bar)
A design concept based on quality
- Large surface after cooler – Optimum cooling to ensure low operating and discharge temperatures.
- High performance separator filter – Two stage filtration ensures highest quality air is delivered to your system (< 3ppm oil carryover). The vessel has a hinged cover for easy maintenance.
- High efficiency electric motor – The compressors are equipped with an energy saving IE3 electric motor with reduced CO2 emissions.
- Thermostatically controlled motor driven fan – High efficient and extremely quiet fan, allows compressor operation in the work place, and the use of the maximum duct length without further assistance.
- Highest quality connections – Solid hoses and pipe connections with viton victaulic couplings increase reliability and are easy to maintain

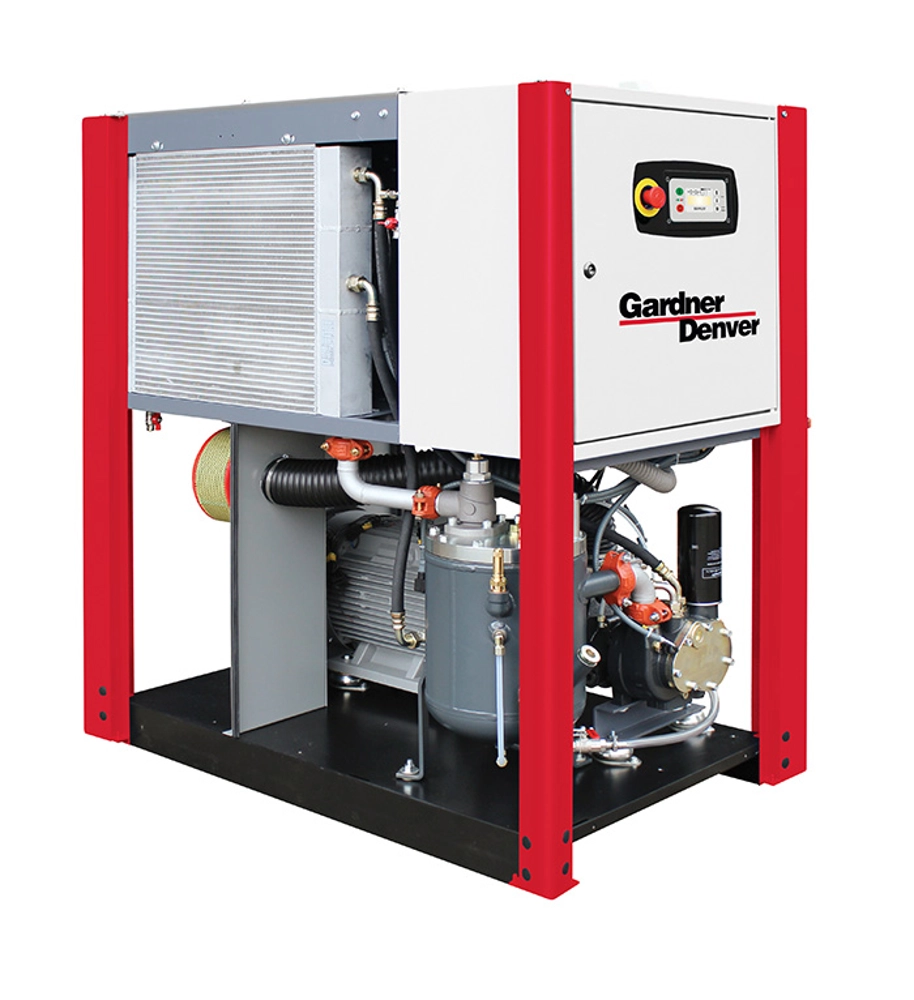

ESM / VS 23 screw air compressor
Premium efficiency air end
The high output airend with slow rotational speed reduces energy costs. In addition to this, the innovative design of the fail safe shaft seal, integrated oil filter and oil regulation valve, ensures external hoses are reduced to a minimum to guarantee the highest levels of quality and reliability are achieved. With the new extended Protect 10 warranty, the airends are covered up to 10 years or 44,000 hours.* *whichever is soonest.

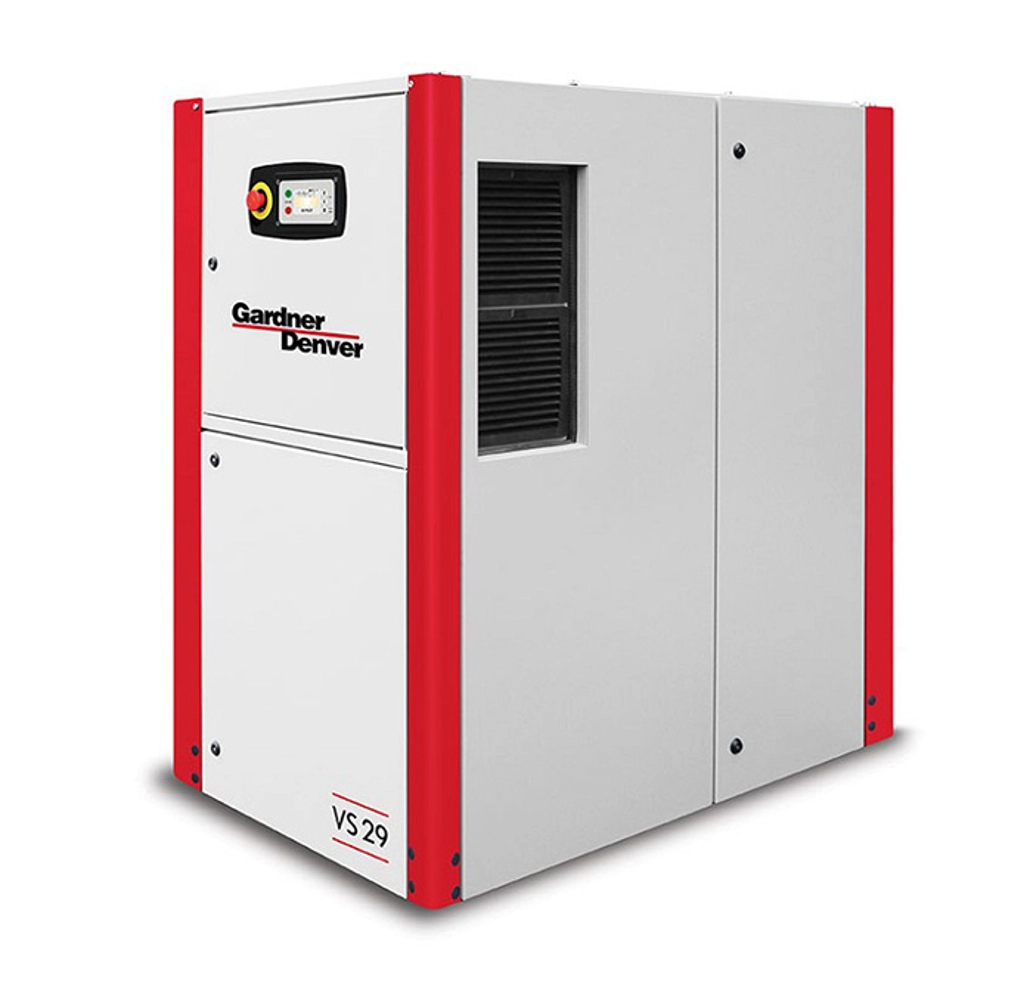

The VS Variable speed compressor – one smart solution
The VS compressor is an efficient and versatile solution even for the most demanding industrial applications and carries all of the Gardner Denver features and benefits associated with reliable, easy to use operations and high efficiency.
ESM 23 rotary screw compressor
Life Cycle Solutions
Performance Data
Â
First Class Accessibility
The design of these packages assures the service points are readily accessible. The enclosure side doors are hinged and removable to allow complete access to all service points. The reduced number of moving parts also lowers maintenance costs.
The best investment protection you can get
10 Years Warranty!
The Gardner Denver Protect 10 Warranty and Service programmes will protect you up to 44,000 hours/10 years 1]. It is one of the most generous warranties available in the industry affording you total piece of mind.
Your benefits:
- The Protect 10 warranty is totally free to the compressor owner 2]
- The Gardner Denver authorised service provider will deliver a guaranteed quality of service
- The Protect 10 service agreement underpinning the warranty will enable accurate maintenance, budgeting and cost of ownership
- The use of genuine Gardner Denver parts and lubricants will maximise compressor life and efficiency
1] Warranty duration is limited to 6 years/44,000 hours on the whole package, 10 years/44,000 hours on the air end. Whichever is the soonest.
2] subject to Terms & Conditions

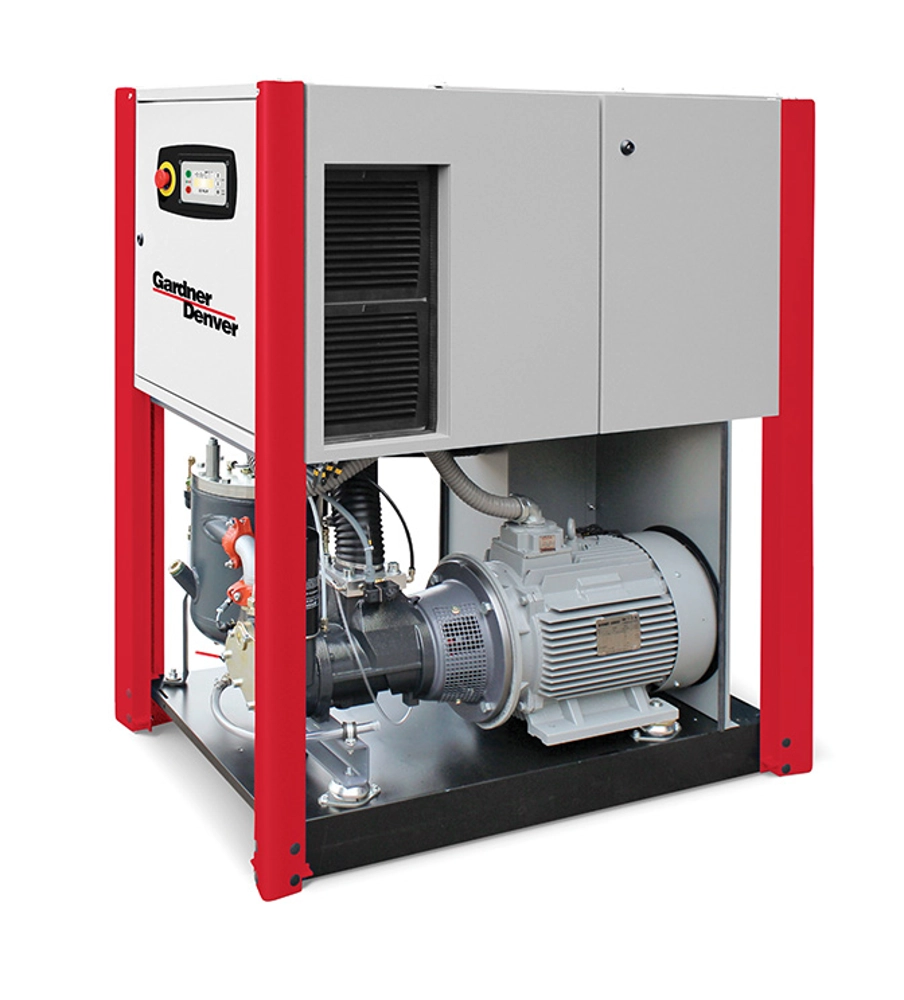

ESM23 without side panels
