Lubricated Rotary Screw Compressors (2 - 7.5 kW)
Simple and easy to use compressor design
This package was designed to keep the design concept as simple as possible while at the same time it is so quiet that it can be installed where it is needed without special consideration for noise.
High reliability – Low service costs
Well known in the industry for quality and reliability, Gardner Denver continuously develops the ESM Series to achieve cutting edge performance and efficiency. The ESM02-ESM06 range of lubricated screw compressors comprises of many different models and versions to allow maximum flexibility.
Pressure range:Â 10 bar
Volume flow: 0.18 to 0.9 m³/min
Motor power:Â 2.2 to 7.5 kW
- Easy installation
- Simple maintenance
- Available as stand alone or as a tankmounted model, with optional compressed air dryer
- Brand new state of the art compressor controller C-Pro 1.0+

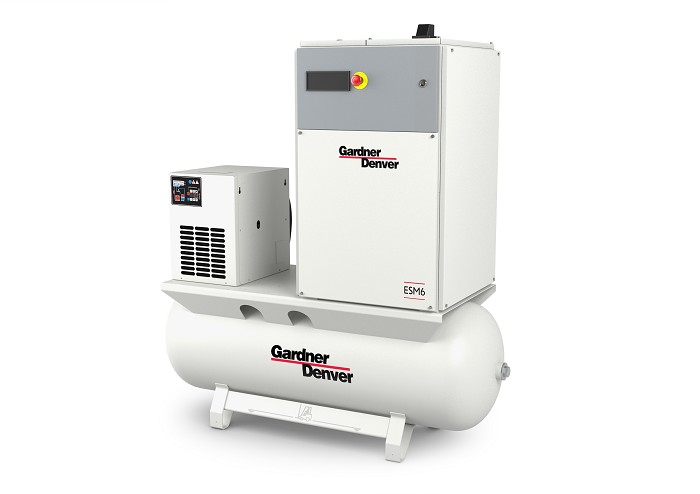

ESM6 with tank and dryer
- Tankmounted on air receivers
- Tankmounted and with add-on refrigerant dryer plus filter kit
- Market leading airend, made using the latest CNC rotor grinding machinery, coupled with online laser technology

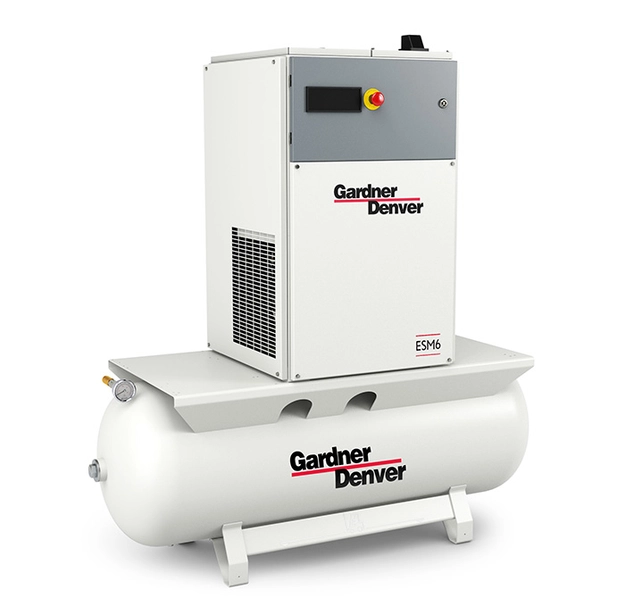

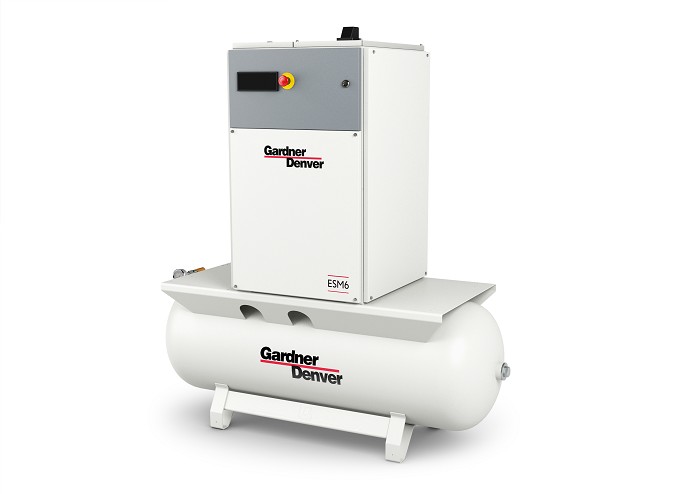

ESM6 with tank
ESM6 with tank and dryer
2.2 – 7.5 kW Screw Air Compressors – Performance Datasheet
Maintenance Made Easy
Installation takes only a few minutes. All the service points are easily accessible through the removable side doors. The simple design minimizes the number of moving parts, resulting in lower maintenance costs. Air/Oil filter separator and oil filter are mounted side by side to ensure easy access for maintenance purposes.
