Adsorption Air Dryers

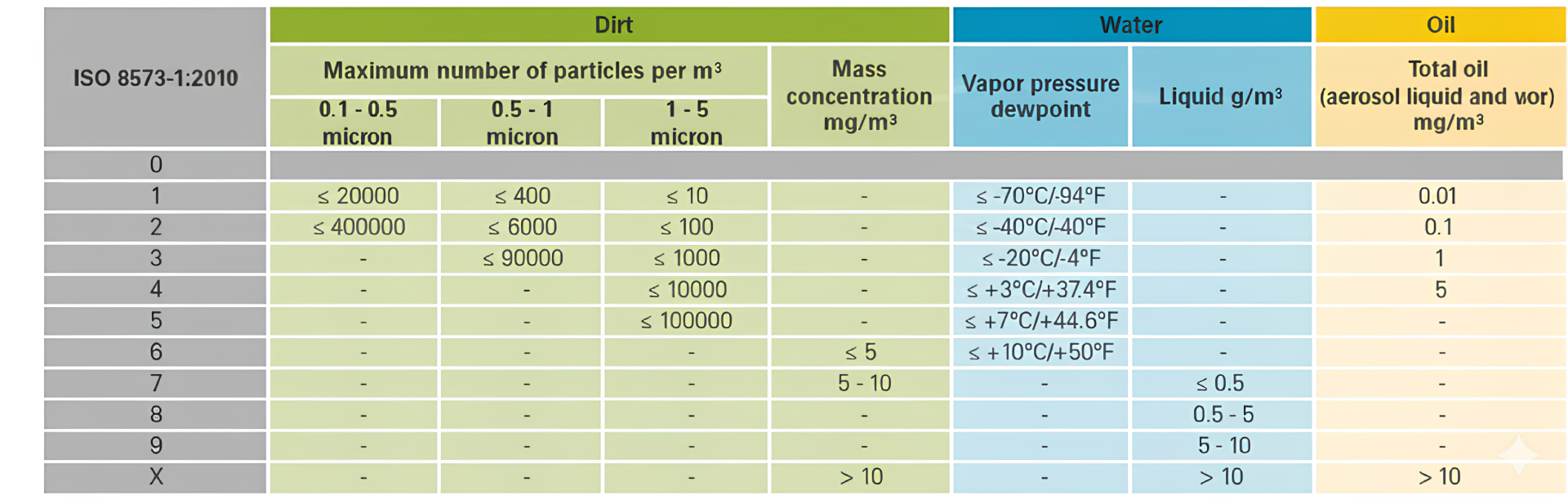

Compressed air contains contaminants such as water, oil and particulates which must be removed or reduced to the acceptable level based on specific application requirements. Standard ISO 8573-1 specifies air purity/quality classes for these contaminants. Humidity (water vapour content) is expressed in the terms of Pressure Dew Point (PDP) where Dew point is the temperature at which air is 100% saturated with moisture.
Adsorption Air Dryers
An adsorption air dryer is a unique and highly efficient type of dryer that produces compressed air. The adsorption method of drying generates compressed air with very low dew point, from -20°C to -70°C. adsorption dryers are designed for continuous separation of water vapour from the compressed air thus reducing the pressure dew point. A wide range of adsorption air dryers are available to choose from depending upon the application and your industrial requirement.
OMEGA Adsorption Air Dryers
A-DRY desiccant adsorption compressed air dryers
Adsorption compressed air dryers with activated carbon tower A-DRY TAC
B-DRY series - Heatless regeneration adsorption dryers
B-DRY TAC heatless regeneration adsorption dryers with activated carbon tower
B-DRY BM Medical heatless regeneration adsorption dryers
COM-DRY series - combined compressed air dryers
Gardner Denver Adsorption Air Dryer
Dryers Desiccant - GDHB Series
Dryers Desiccant - GDXTF & GDXTH series
Desiccant & Heatless Desiccant Air Dryers
At QualTrec Solutions, we offer high-performance desiccant air dryers and heatless desiccant dryers, designed to deliver superior moisture control for a range of industrial applications. Our dryers ensure reliable, clean, and dry compressed air to protect your equipment and processes.
Desiccant Air Dryers use advanced desiccant materials such as silica gel, activated alumina, or molecular sieves to absorb moisture from compressed air. These dryers feature twin-tower systems: one tower adsorbs moisture while the other is regenerated. Depending on the application, our desiccant dryers can achieve dew points as low as -70°C and operate efficiently across a wide range of airflows, from small-scale operations to large industrial applications.
Heatless Desiccant Dryers, a specific type of desiccant dryer, work by utilizing a portion of the dry air to regenerate the desiccant material. This process eliminates the need for external heat sources, making them energy-efficient while still achieving low dew points. Heatless dryers are ideal for industries requiring ultra-dry air, with dew points as low as -40°C to -70°C. They are engineered for low maintenance and minimal operational costs, ensuring reliability in critical environments such as pharmaceuticals, electronics, and aerospace.
Our heatless desiccant dryers are equipped with microprocessor-based controllers, offering precise control over air flow and regeneration cycles. With modular designs, they can be customized for a wide range of flow capacities, providing flexibility to suit your specific needs.
Choose QualTrec Solutions for high-efficiency desiccant and heatless desiccant air dryers that ensure optimal performance while reducing energy costs. Contact us today for technical consultation and tailored solutions for your business.
